【LaTex】Mathjax Library (1)

In the last post, we tested some of Latex Cheatsheet's syntax to check if they are transferrable in Mathjax-html environment. However, most of the test turned out to be failure, with most syntax not being printed out as expected.



【LaTex】Cheat Sheet Test



After some additional research, I found a resource, a stackexchange discussion, with a detailed list of syntax that can be used in lieu of cheatsheet's syntax. Please find the information below.



번역본은 밑에 있는 링크를 통해 보실 수 있습니다.

【LaTex】Mathjax Library (1) :: 한글 ver.





Mathjax
Working Syntax

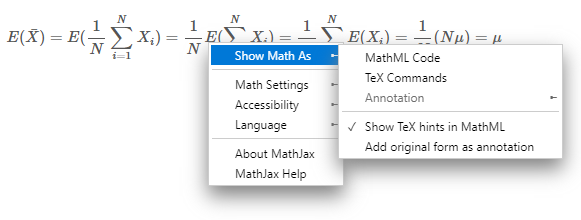

1. To see how any formula was written in any question or answer, including this one, right-click on the expression it and choose "Show Math As > TeX Commands". (When you do this, the '$' will not display. Make sure you add these. See the next point.)





Image 1. Show Math As > TeX Commands





Image 2. Result







2. For inline formulas, enclose the formula in $...$. For displayed formulas, use $$...$$. These render differently.



For example, type



$\sum_{i=0}^n i^2 = \frac{(n^2+n)(2n+1)}{6}$

to show (inline mode)



$\sum_{i=0}^n i^2 = \frac{(n^2+n)(2n+1)}{6}$



or type



$$\sum_{i=0}^n i^2 = \frac{(n^2+n)(2n+1)}{6}$$

to show (display mode)



$$\sum_{i=0}^n i^2 = \frac{(n^2+n)(2n+1)}{6}$$







3. For Greek letters, use \alpha, \beta, …, \omega. For uppercase, use \Gamma, \Delta, …, \Omega.



# Lowercase Greek Letters
\alpha, \beta, …, \omega.

# Uppercase Greek Letters
\Gamma, \Delta, …, \Omega.



LowerCase:



$$\alpha, \beta, ..., \omega$$





UpperCase:



$$\Gamma, \Delta, ..., \Omega$$







4. For superscripts and subscripts, use ^ and _.



For example,

x_i
x^2
x_i^2

\log_2
\sigma_x^2 \sigma_y^2



Result:

$$ x_i$$ $$x^2$$ $$x_i^2$$ $$\log_2$$ $$\sigma_x^2 \sigma_y^2 $$





5. Groups. Superscripts, subscripts, and other operations apply only to the next “group”. A “group” is either a single symbol, or any formula surrounded by curly braces {…}. If you do 10^10, you will get a surprise: 1010. But 10^{10} gives what you probably wanted: $10^{10}$. Use curly braces to delimit a formula to which a superscript or subscript applies.







x^5^6  >>> Error

Observe the difference between:

{x^y}^z
x^{y^z}

x_i^2 x2i
x_{i^2} xi2



Results:

$$x^5^6$$ $${x^y}^z$$ $$x^{y^z}$$ $$x_i^2 x2i $$ $$x_{i^2} xi2$$





{i^2} is interprested as square of i instead of squaring $x_i$.





6. Parentheses Ordinary symbols ()[] make parentheses and brackets (2+3)[4+4]. Use \{ and \} for curly braces {}.

These do not scale with the formula in between, so if you write (\frac{\sqrt x}{y^3}) the parentheses will be too small: $(\frac{\sqrt x}{y^3})$. Using \left(…\right) will make the sizes adjust automatically to the formula they enclose: $\left(\frac{\sqrt x}{y^3}\right)$ is (√xy3).

\left and\right apply to all the following sorts of parentheses:



( and )               \left(x\right)
[ and ]               \left[x\right]
\{ and \}             \left\{x\right\}
|                     \left|x\right|
\vert                 \left\vert x\right\vert
\Vert                 \left\Vert x \right\Vert
\langle and \rangle   \langle x \rangle
\lceil and \rceil     \lceil x \rceil
\lfloor and \rfloor   \lfloor x \rfloor

Results:

( and )   $\left(x\right)$

[ and ]   $\left[x\right]$

\{ and \}   $\left\{x\right\}$

|   $\left|x\right|$

\vert   $\left\vert x\right\vert$

\Vert   $\left\Vert x \right\Vert$

\langle and \rangle    $\langle x \rangle$

\lceil and \rceil    $\lceil x \rceil$

\lfloor and \rfloor    $\lfloor x \rfloor$



\middle ( $\middle$) can be used to add additional dividers. There are also invisible parentheses, denoted by .: \left.\frac12\right\rbrace is 12}. ($\left.\frac12\right\rbrace$).



If manual size adjustments are required: \Biggl(\biggl(\Bigl(\bigl((x)\bigr)\Bigr)\biggr)\Biggr) gives $\Biggl(\biggl(\Bigl(\bigl((x)\bigr)\Bigr)\biggr)\Biggr)$.





We will continue with the next 6 tips in the next post.
